HEAVY DUTY KEY SWITCHES > LARGE FORMAT INTER-CHANGEABLE CORE CYLINDER CORBIN®
Large Format Inter-changeable Core Cylinder Corbin®
ICCO03A1 | ICCO03B1 | ICCO03B2 | ICCO03D2 | ICCO03E2 | ICCO03K4 | ICCO03L2 | ICCO03B3/J3 | ICCO03P2/R4
SWITCH TYPE
SPDT
(Single pole – Double Throw)
CONTACT RATING
10A 125vac, 10A 250vac
Resistive
SWITCH ACTION
Momentary
on-on
FINISHES
BHMA
626, 613 & 606
KEY ROTATION
30º
Clockwise-on
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/32”dia by .950” (flat width) Double “D” Design
APPLICATION A1
ETI model A1 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Momentary on-on with 33° clockwise Rotation with SPDT Switch, 5 amp Contact Rating for control applications in Shunting, Activating or Deactivating Control Equipment and other applications.
SWITCH TYPE
B1-SPDT
(Single pole – Double Throw)
CONTACT RATING
15A 125vac, 15A 250vac
Resistive
SWITCH ACTION
Momentary
on-on
FINISHES
BHMA
626, 613 & 606
KEY ROTATION
45º
Clockwise-on
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/32”dia by .950” (flat width) Double “D” Design
APPLICATION B1/J1 (2 switch)
ETI model B1 and J1 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Momentary on-on with detent function @ 45° clockwise rotation and SPDT Switch, 15 amp contact rating for control applications in Shunting, Activating or Deactivating Control Equipment and other applications.
SWITCH TYPE
B2-SPDT
(Single pole – Double Throw)
CONTACT RATING
15A 125vac, 15A 250vac
Resistive
SWITCH ACTION
Maintained
on-on
FINISHES
BHMA
626, 613 & 606
KEY ROTATION
360º
Clockwise-on
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/32”dia by .950” (flat width) Double “D” Design
APPLICATION B2/J2 (2 switch)
ETI model B2 and J2 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Maintained on-on with 360° rotation with SPDT Switch with 15 Amp Contact Rating for control applications in lighting, HVAC, Recreational Devices (spa’s), Shunting, Activating or Deactivating Control Equipment and other applications.
SWITCH TYPE
DPST
(Double pole – Single Throw)
CONTACT RATING
15A 125vac, 15A 250vac, DC30v 15A
Resistive
SWITCH ACTION
Maintained
on-off
FINISHES
BHMA
626, 613 & 606
KEY ROTATION
25º Clockwise-on,
25º Counter Clockwise-off
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/32”dia by .950” (flat width) Double “D” Design
APPLICATION D2
ETI model D2 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Maintained on-off with 25° rotation clockwise and counter clockwise with DPST Switch, 15 amp, 15amp DC30v Contact Rating for control applications in lighting, HVAC, Recreational Devices, Shunting, Activating or Deactivating Control Equipment and other applications.
SWITCH TYPE
TPDT
(Triple pole – Double Throw)
CONTACT RATING
25A 125vac, 9A 250vac, 20A 30vdc
Resistive
SWITCH ACTION
Maintained
on-center off-on
FINISHES
BHMA
626, 613 & 606
KEY ROTATION
30º Clockwise-on,
30º Counter Clockwise-on
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/32”dia by .950” (flat width) Double “D” Design
APPLICATION E2
ETI model E2 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Maintained on-center off center with 30° rotation clockwise-on and counter clockwise-off with TPDT Switch, 25 amp 125 ac, 20amp DC30v Contact Rating for control applications in lightin g, HVAC, Recreational Devices, Shunting, Activating or Deactivating Control Equipment and other applications.
SWITCH TYPE
DPDT
(Double pole – Double Throw)
CONTACT RATING
15A 125vac, 15A 250vac Resistive,
Motor Load 400w 125vac
SWITCH ACTION
Momentary
on-center off-on
FINISHES
BHMA
626, 613 & 606
KEY ROTATION
24º Clockwise-on,
24º Counter Clockwise-on
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/32”dia by .950” (flat width) Double “D” Design
APPLICATION K4
ETI model K4 Inter-changeable Core Key Switch Control s will integrate into systems performing the Switch Action of Momentary On- Center-On with 24° rotation clockwise-on and counter clockwise-on with DPDT Switch, 15 amp 125 ac, Motor Load 400w 125 ac Contact Rating for control applications in Gate, Overhead Door Control, Pump control, Activating or Deactivating Control Equipment and other applications.
SWITCH TYPE
SPDT
(Single pole – Double Throw)
CONTACT RATING
15A 125vac, 6A 250vac,
20A 30vdc Resistive
SWITCH ACTION
Maintained
on-on
FINISHES
BHMA
626, 613 & 606
KEY ROTATION
32º Clockwise-on,
32º Counter Clockwise-on
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/32”dia by .950” (flat width) Double “D” Design

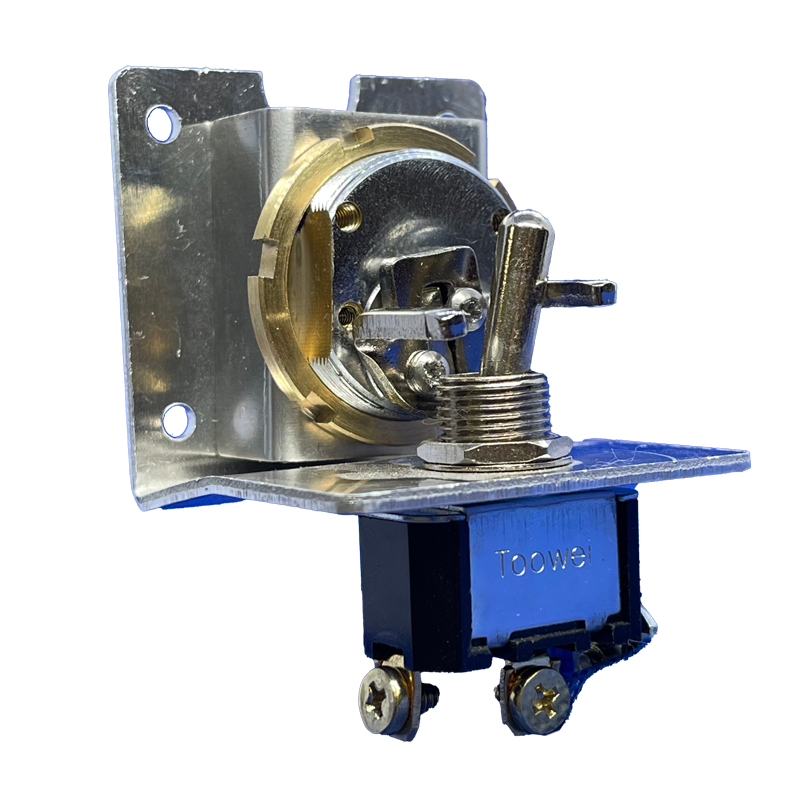

APPLICATION L2
ETI model L4 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Momentary off-center with 24° rotation clockwise-on and counter clockwise-on with SPDT Switch, 15 amp 125 ac, Motor Load 400w 125 ac Contact Rating for control applications in Gate, Overhead Door Control, Pump control , Activating or Deactivating Control Equipment and other applications .
SWITCH TYPE
B3-SPDT
(Single pole – Double Throw)
CONTACT RATING
10A 125vac, 10A 250vac
Resistive
SWITCH ACTION
Momentary
on-on
FINISHES
BHMA
626, 613 & 606
KEY ROTATION
30º
Clockwise-on
PANEL MOUNT PREPARATION
Large Cam Lock Style 1-5/32”dia by .950” (flat width) Double “D” Design
MODEL: J-3 (2) SPDT Switches (Single Pole – Double Pole)
APPLICATION B3/J3 (2 switch)
ETI model B3 and J3 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Momentary on-on with 30° clockwise rotation with SPDT Switch, 15 amp Contact Rating for control applications in Shunting, Activating or Deactivating Control Equipment and other applications.
SWITCH TYPE
P2-(4) SPDT
(Single pole – Double Throw)
CONTACT RATING
15A 125vac, 15A 250vac
Resistive
SWITCH ACTION
Momentary
on-on
FINISHES
BHMA
626, 613 & 606
KEY ROTATION
30º Clockwise-on,
30º Counter Clockwise-on
PANEL MOUNT PREPARATION
Large Cam Lock Style 1 5/32”dia by .950” (flat width) Double “D” Design
MODEL: R-4 (4) SPDT Switches (Single Pole – Double Pole)
APPLICATION P2 (2 switch) R4 (4 switch)
ETI model P2 and R4 Inter-changeable Core Key Switch.Control s will integrate into systems performing the Switch Action of Momentary off- center with 30° rotation clockwise-on and counter clockwise-on with SPDT Switch 15amp Contact Rating, Design for Panel Mounting integration in control applications of Activating or Deactivating Control Equipment and other applications.
OPTIONS: FACEPLATES
Narrow Faceplate
Option 0
Single Gang Faceplate
Option 1
Double Gang Faceplate
with single switch
Option 2
Double Gang Faceplate
with double switch
Option 3
FINISHES
Indicators
Satin Chrome
BHMA 626
option S
Oiled Rubbed Bronze
BHMA 613
option D
Satin Brass
BHMA 606
option B
RED LED
INDICATOR (1)
12/24 volt, mounted
option R
GREEN LED INDICATOR (1)
12/24 volt, mounted
option G
RED (1) & GREEN (1) LED INDICATOR
12/24 volt, mounted
option T
